5V Single Channel Relay Module 10A

Add Your Review
Available: Out of Stock
$3.99
Pre-order
Successful pre-order.Thanks for contacting us!

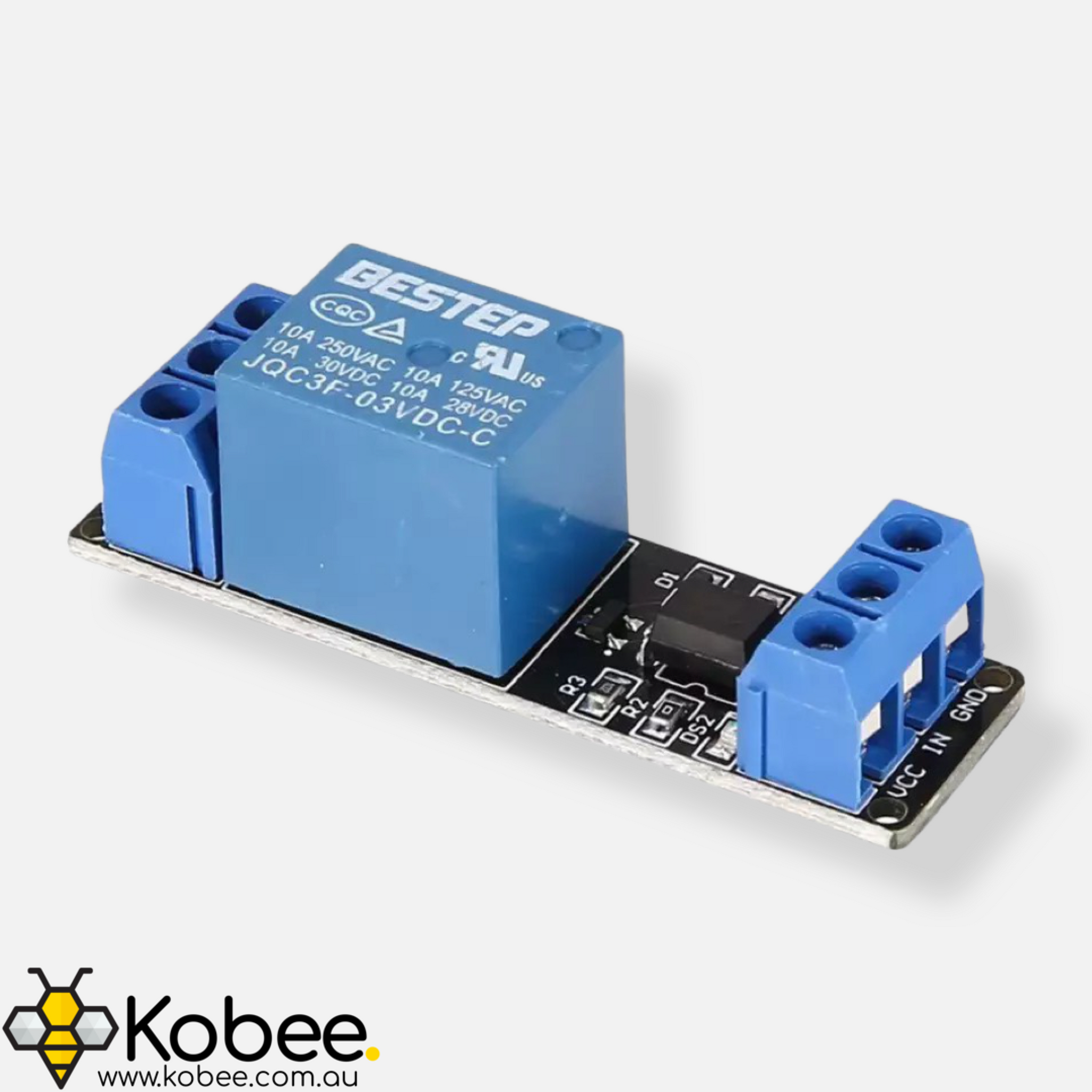

These versatile 5V relay modules allow you to control larger devices up to 10A using whatever flavour of microcontroller you prefer or even a simple button

  • Compatible with all microcontroller boards including Arduino and ESP variants
  • The relay is designed to operate up to 30VAC or 30VDC at 10A
  • Capable of controlling 1 device (Single Channel)
  • 2 onboard LEDs show you the state of the relay
  • The relay is activated when the input pin is pulled low to ground. If the input pin is floating or at VCC, the relay will inactivate

Refer to Pinout tab for an explanation of the relavent pins on the module


Note
  • This device is designed to work with 5V on the control side VCC and input signal IN although we have tested it with 3.3V and confirm it will work in most cases.
  • Ensure that both the input signal IN and voltage VCC are the same. Ie. 5V or 3.3V
Warning
This board is not designed to be utilised with mains voltages and is intended for low voltage applications only.


Working with high voltage electricity can result in personal injury and / or property damage

These versatile 5V relay modules allow you to control larger devices up to 10A using whatever flavour of microcontroller you prefer or even a simple button

  • Compatible with all microcontroller boards including Arduino and ESP variants
  • The relay is designed to operate up to 30VAC or 30VDC at 10A
  • Capable of controlling 1 device (Single Channel)
  • 2 onboard LEDs show you the state of the relay
  • The relay is activated when the input pin is pulled low to ground. If the input pin is floating or at VCC, the relay will inactivate

Refer to Pinout tab for an explanation of the relavent pins on the module


Note
  • This device is designed to work with 5V on the control side VCC and input signal IN although we have tested it with 3.3V and confirm it will work in most cases.
  • Ensure that both the input signal IN and voltage VCC are the same. Ie. 5V or 3.3V
 Warning This board is not designed to be utilised with mains voltages and is intended for low voltage applications only.


Working with high voltage electricity can result in personal injury and / or property damage

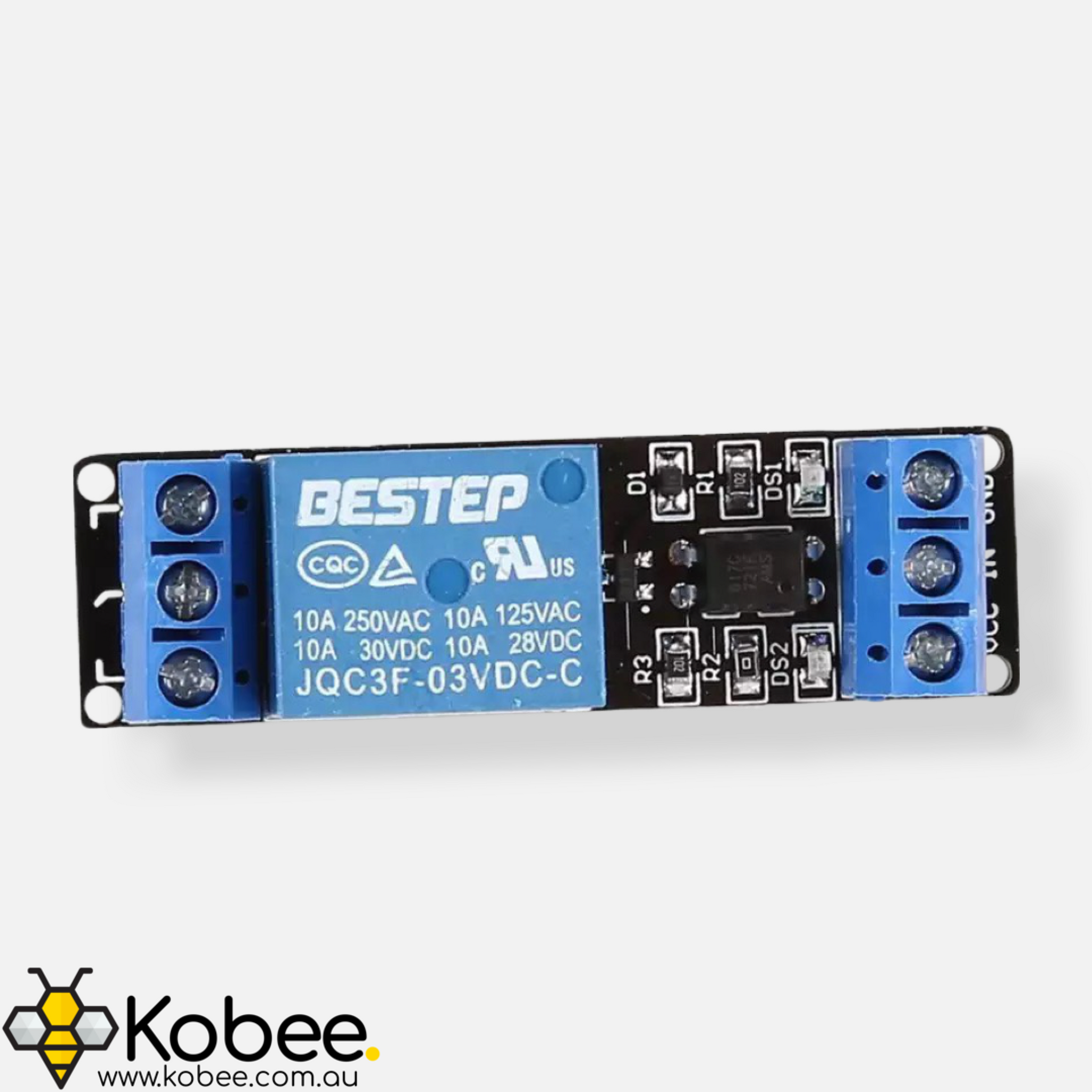

5V Single Channel Relay Pinout


Label Name Notes
NO Normally Open Pin is normally disconnected fromcommon unless relay is activated
COM Common Connected to circuit you are planning to switch
NC Normally Closed Pin is normally connected to common unless relay is activated
VCC Voltage input Input Voltage for control circuit and relay coil - 5V*
GND Ground Common Ground Connection
IN Input Pin used to control the relay (Connected to output of microcontroller or switch. Pin is active low meaning it will be activated when you pull the pin low
