About this product

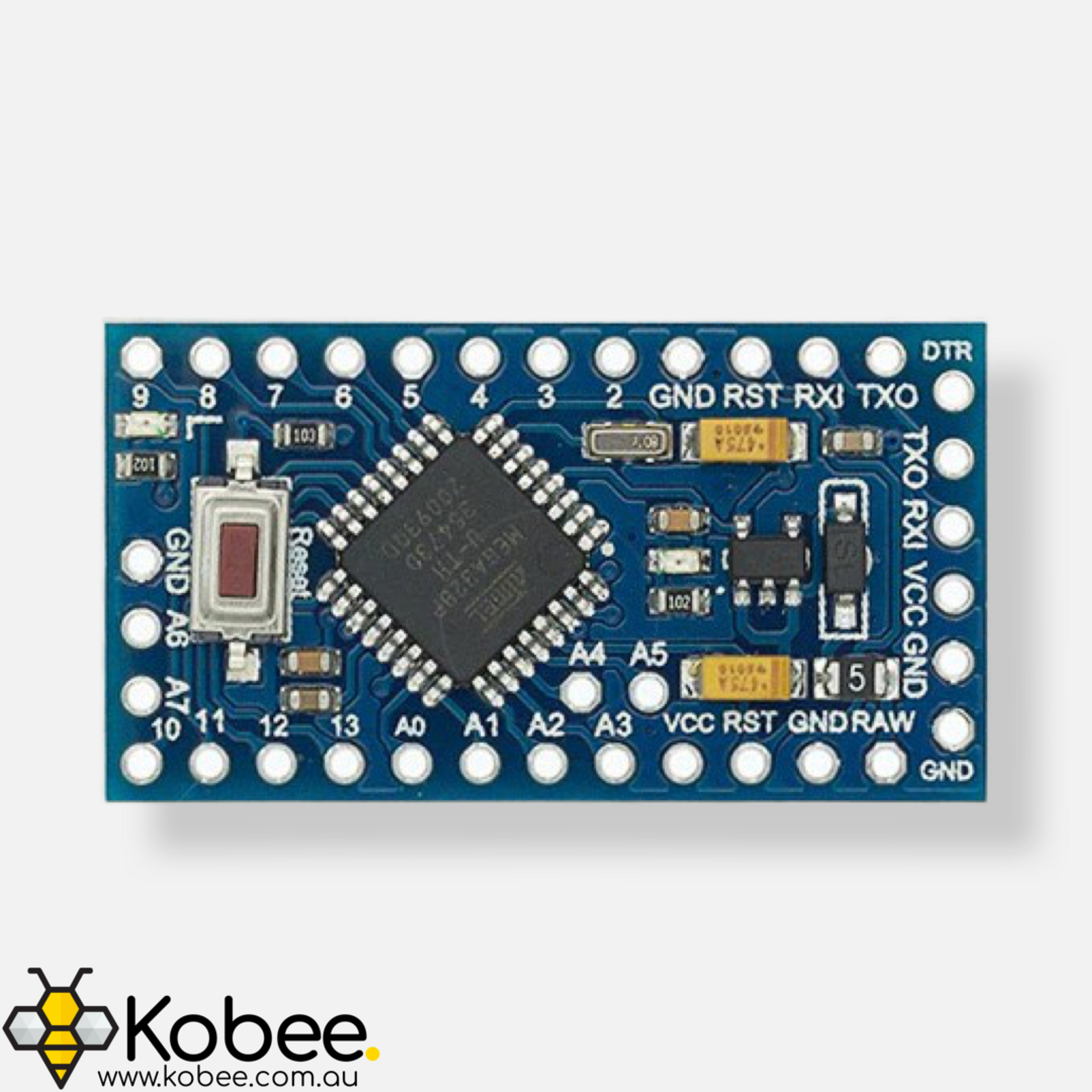

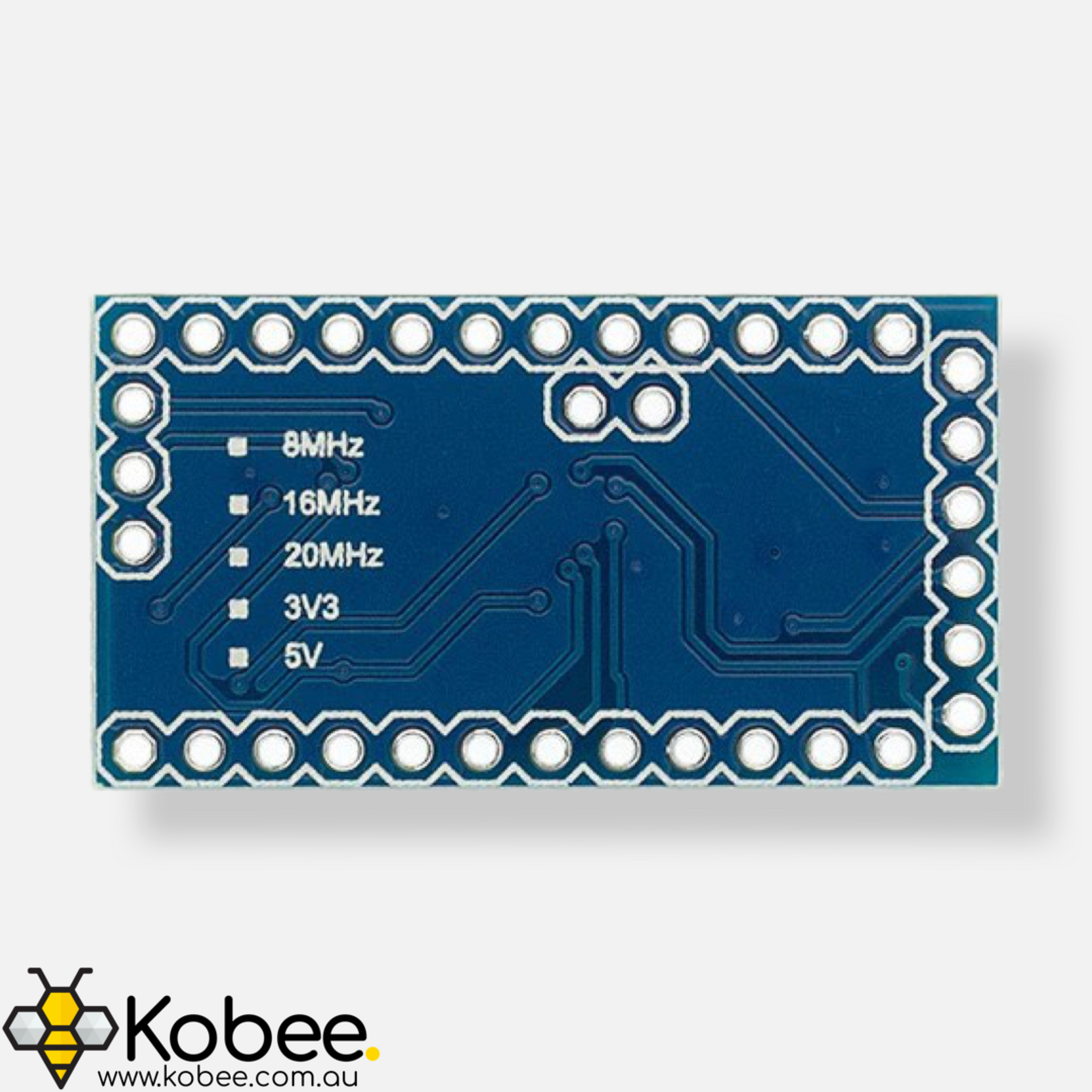

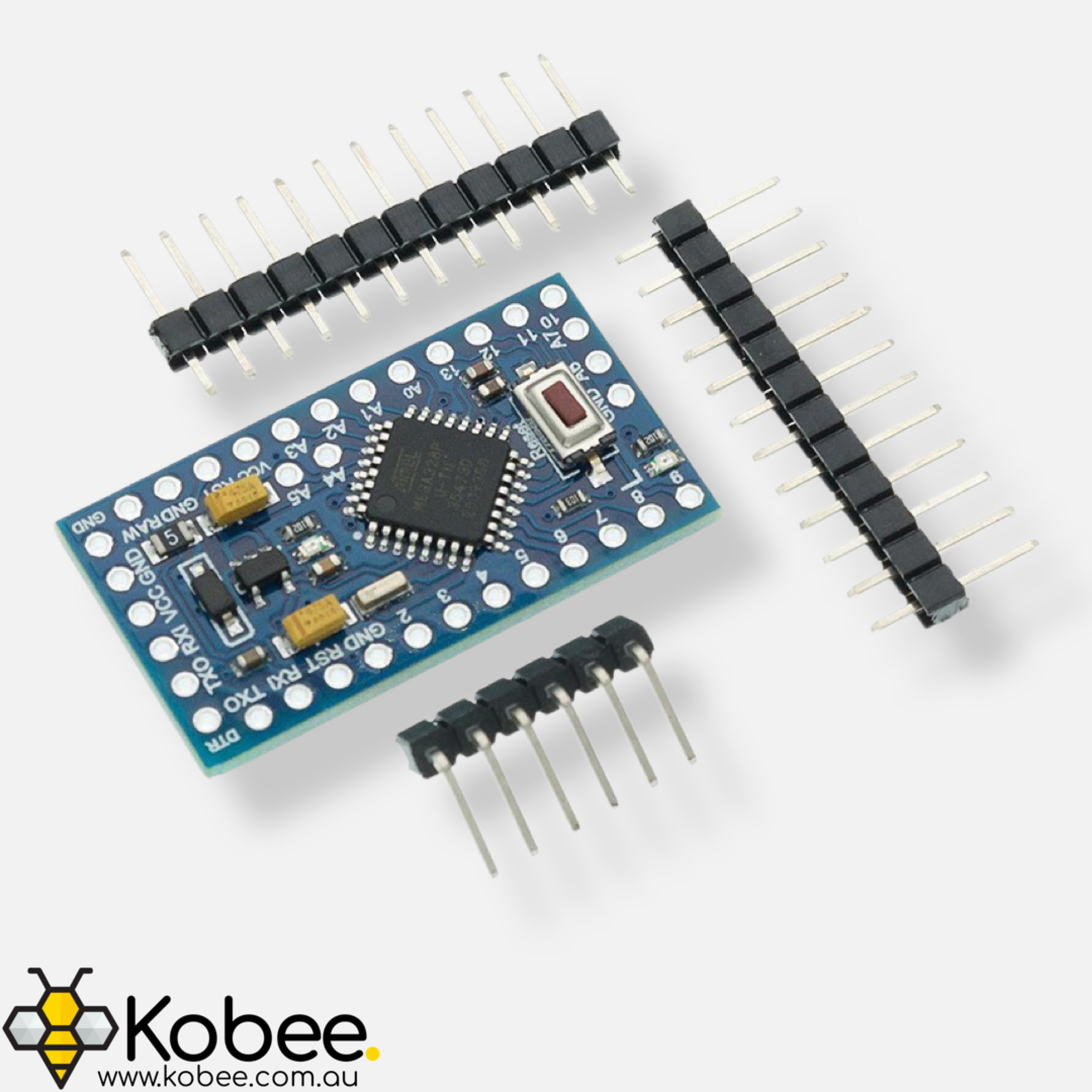

Develop and prototype electronics projects with the Arduino Pro Mini 5V. This Arduino-compatible microcontroller board is suited to robotics, automation, sensors, displays, learning and general embedded electronics.
Key features
- Microcontroller — ATmega328 *
- Board Power Supply — 3.35 -12 V (3.3V model) or 5 - 12 V (5V model)
- Circuit Operating Voltage — 3.3V or 5V (depending on model)
- Digital I/O Pins — 14
Specifications
- Microcontroller: ATmega328 *
- Board Power Supply: 3.35 -12 V (3.3V model) or 5 - 12 V (5V model)
- Circuit Operating Voltage: 3.3V or 5V (depending on model)
- Digital I/O Pins: 14
- PWM Pins: 6
- UART: 1
- SPI: 1
- I2C: 1
- Analog Input Pins: 6
- External Interrupts: 2
- DC Current per I/O Pin: 40 mA
- Flash Memory: 32KB of which 2 KB used by bootloader *
- SRAM: 2 KB *
- EEPROM: 1 KB *
- Clock Speed: 8 MHz (3.3V versions) or 16 MHz (5V versions)
Compatibility and use
Use this development board with the Arduino IDE and compatible libraries for embedded electronics, automation, sensor monitoring, robotics and learning projects. Confirm the board’s voltage and pin requirements before connecting external hardware.
Select the required variant where options are available. Confirm connector type, dimensions, electrical requirements or printer compatibility against your project before installation.
What is included
The selected product or pack quantity is shown in the listing details.
