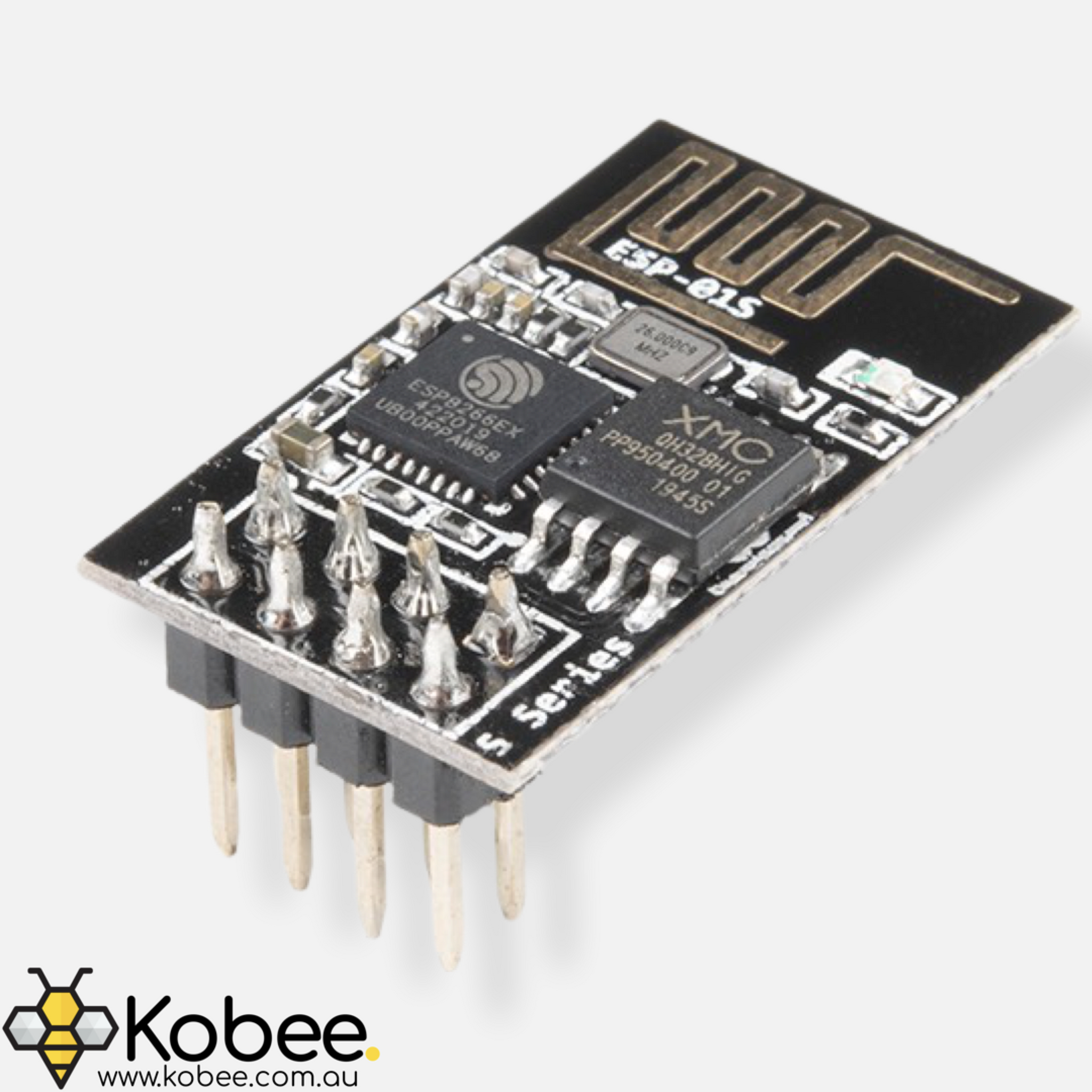

ESP01 ESP8266 Wireless Module

Available: In Stock
$5.99

The ESP8266 WiFi Module can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all WiFi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get out of the box WiFi functionality! The ESP8266 module is an extremely cost effective board with a huge, and ever growing, community.

The best part is, you dont even need a seperate microcontroller to do basic tasks, this module has powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs

Note
The ESP01 was designed to be semi-permanently installed inside your projects and because of this it doesnt have an onboard USB or USB to serial circuitry.
To program your ESP01, you'll need a USB to Serial converter of some sort which will allow you to connect it to your computer.We sell an ESP01 USB to serial programmer with an onboard reset button in our store which will allow you to do just that

After you program your device, you can remove the programmer and connect power directly to the board via the Vin and Ground pins
Warning
ESP-01 Pins are not 5V tolerant. Only connect to 3.3V power and logic level devices

The ESP8266 WiFi Module can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all WiFi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning, you can simply hook this up to your Arduino device and get out of the box WiFi functionality! The ESP8266 module is an extremely cost effective board with a huge, and ever growing, community.

The best part is, you dont even need a seperate microcontroller to do basic tasks, this module has powerful enough on-board processing and storage capability that allows it to be integrated with the sensors and other application specific devices through its GPIOs

Note The ESP01 was designed to be semi-permanently installed inside your projects and because of this it doesnt have an onboard USB or USB to serial circuitry.
To program your ESP01, you'll need a USB to Serial converter of some sort which will allow you to connect it to your computer.We sell an ESP01 USB to serial programmer with an onboard reset button in our store which will allow you to do just that

After you program your device, you can remove the programmer and connect power directly to the board via the Vin and Ground pins
ESP01 USB to Serial Converter ESP01 USB to Serial Converter
Warning ESP-01 Pins are not 5V tolerant. Only connect to 3.3V power and logic level devices
Tech Specs
Microcontroller ESP8266
Circuit Operating Voltage 3.0 - 3.6V
Digital I/O Pins 2
Wi-Fi Protocols 802.11 b/g/n
Frequency Range 2.4GHz-2.5GHz
Operating Current 80mA
Package Size 14.3mm*24.8mm*3mm

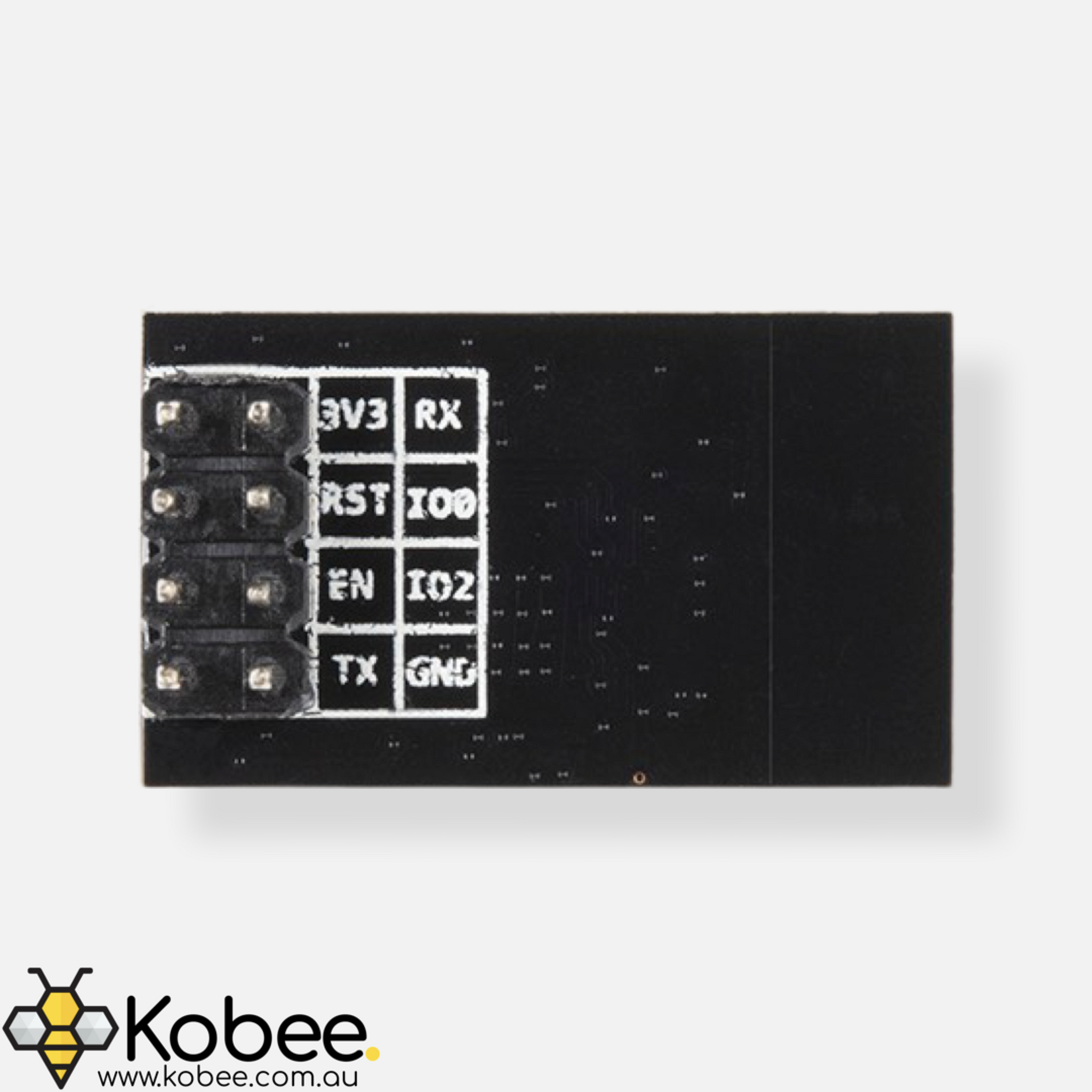

Pinout Guide ESP-01 Pinout Guide
