3.3V + 5V Solderless Breadboard Power Supply Module
Available:
Out of Stock
- Product SKU: AA076
- Category: Best Sellers, Components, New Products, Power and Batteries
$5.99
This breadboard power supply connects into any standard breadboard and allows you to supply 5V or 3.3V to the verticle + and - rails that run either side of the breadboard
- Supply the module with a 6.5V-12V DC power supply connected to the DC jack
- The USB A connector outputs 5V and can be used to connect to your arduino or other micro controller and power it from the same supply as the module
- Module contains an On/Off button
- Left and right rails can be individually controlled to output either 0V, 3.3V or 5V by moving the included jumper
- Maximum current output 700mA
- Designed for MB102 type breadboards
- The 8 header pin allows you to use jumper leads to connect power (2 x 5V and 2 x 3.3V) to other devices
This breadboard power supply connects into any standard breadboard and allows you to supply 5V or 3.3V to the verticle + and - rails that run either side of the breadboard
- Supply the module with a 6.5V-12V DC power supply connected to the DC jack
- The USB A connector outputs 5V and can be used to connect to your arduino or other micro controller and power it from the same supply as the module
- Module contains an On/Off button
- Left and right rails can be individually controlled to output either 0V, 3.3V or 5V by moving the included jumper
- Maximum current output 700mA
- Designed for MB102 type breadboards
- The 8 header pin allows you to use jumper leads to connect power (2 x 5V and 2 x 3.3V) to other devices

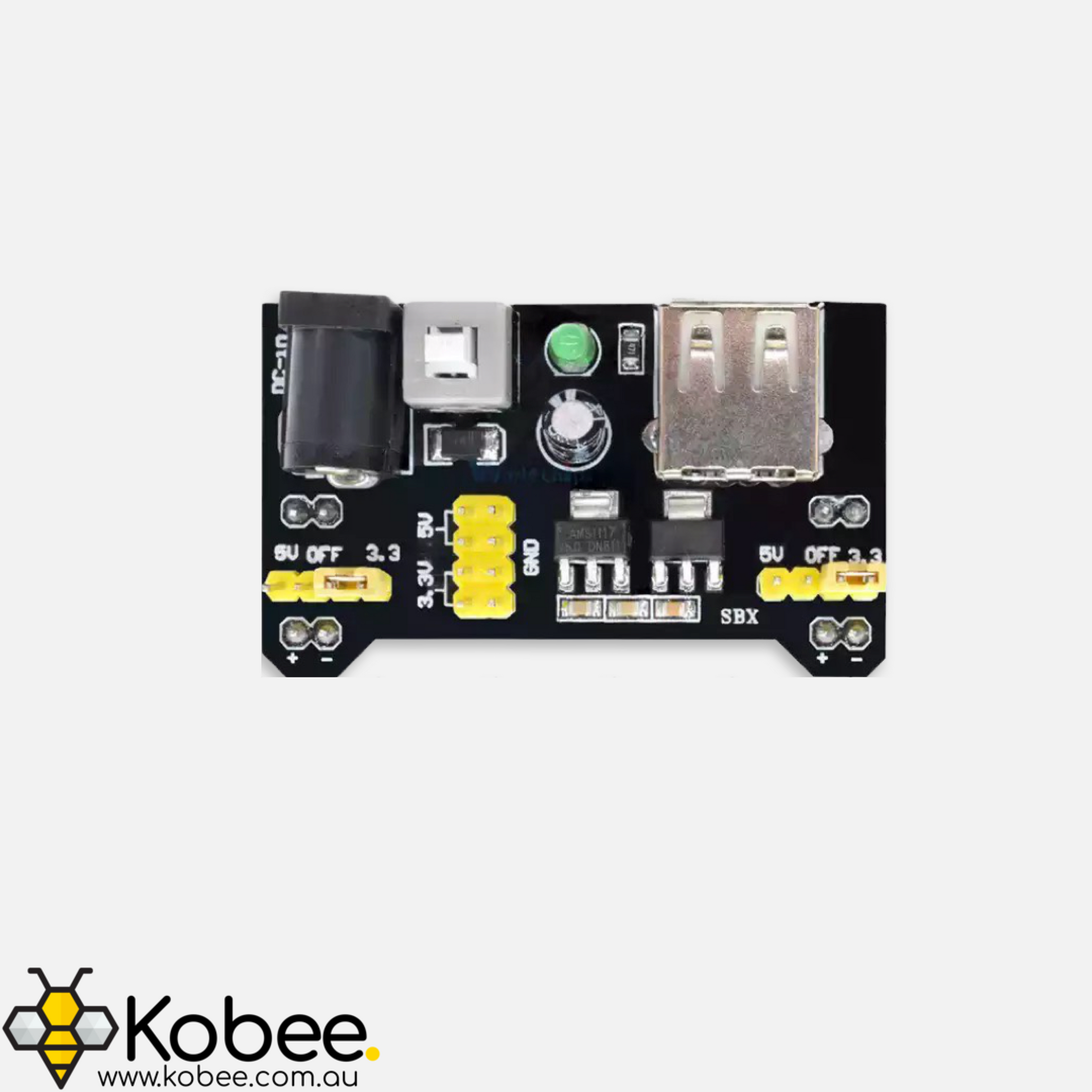

Module Layout
