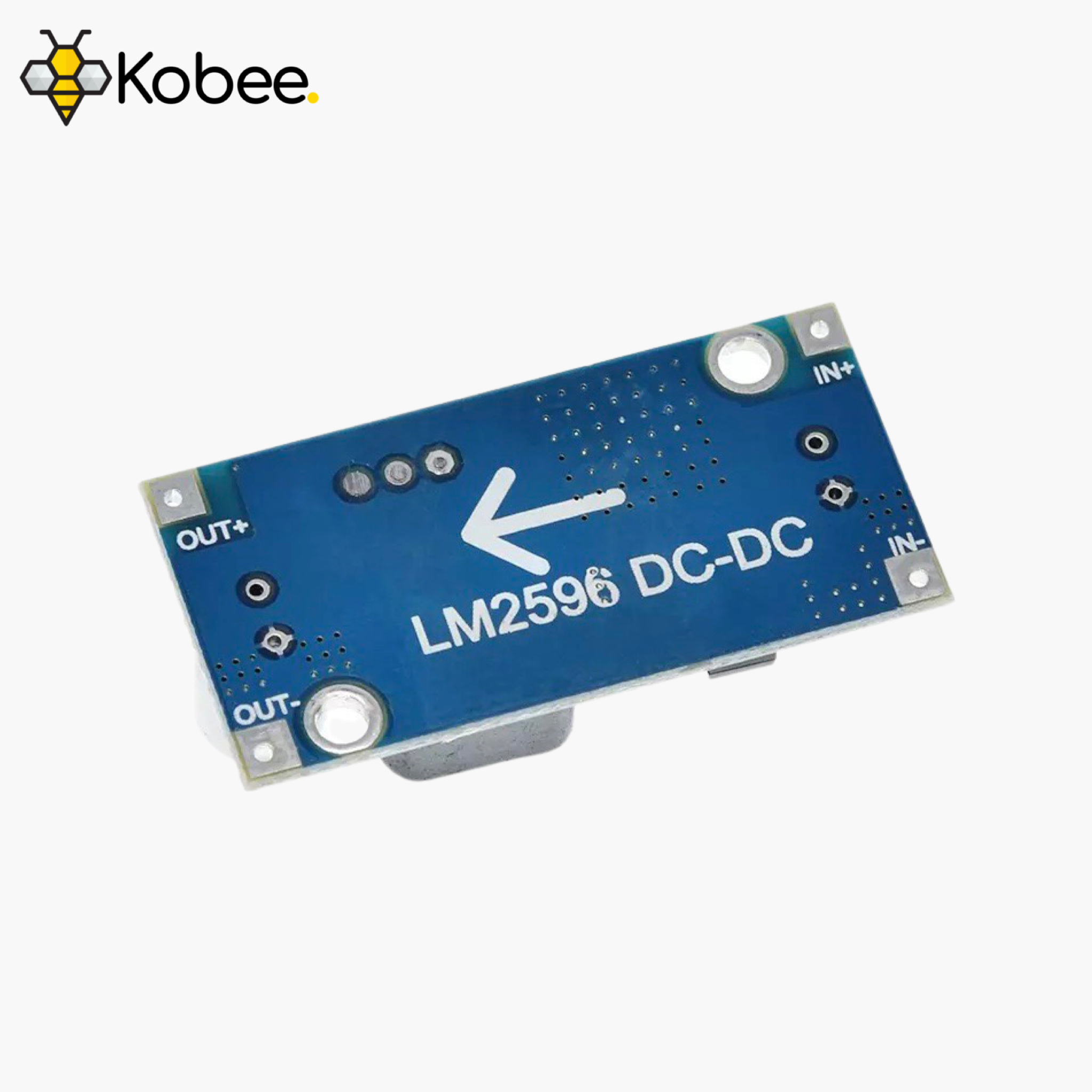

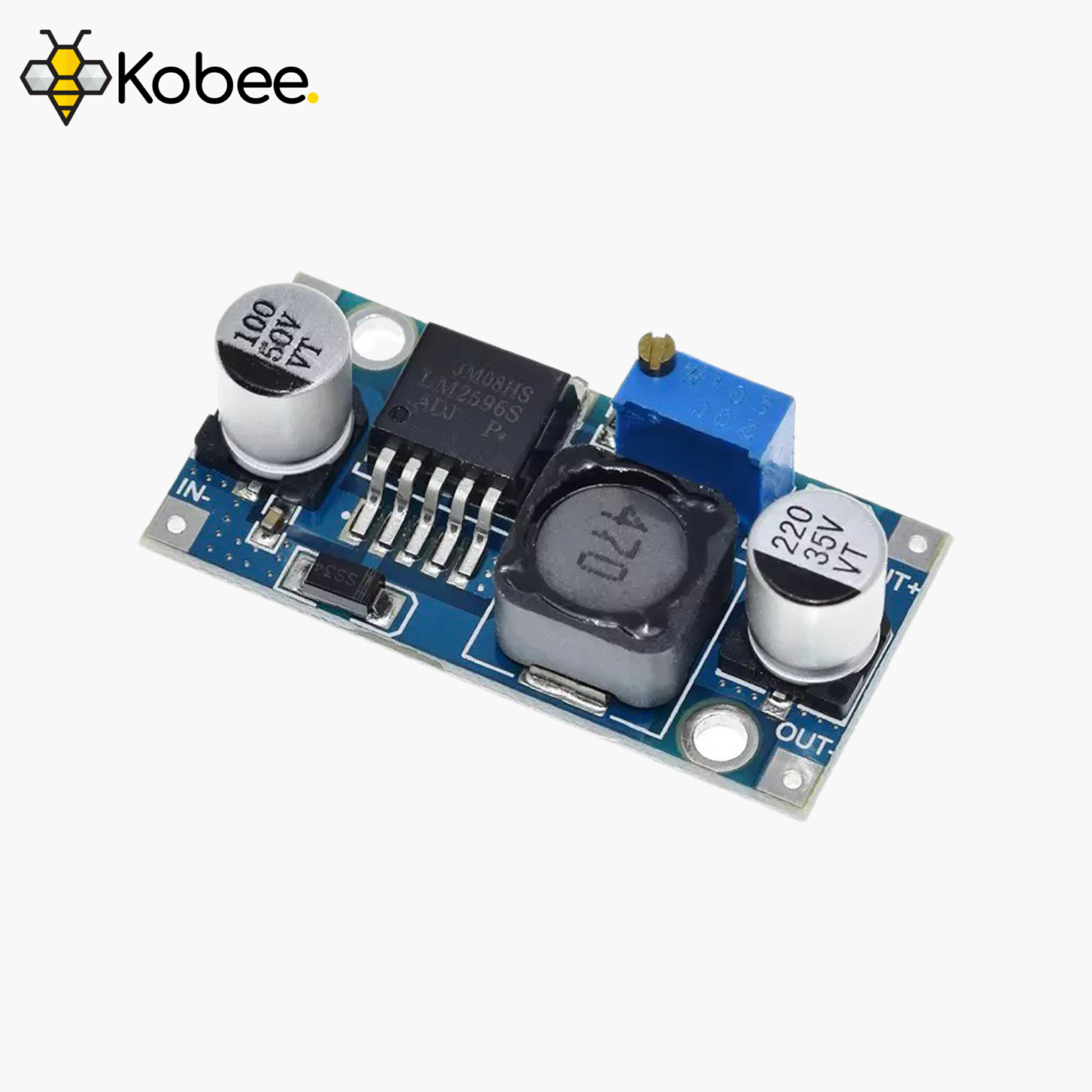

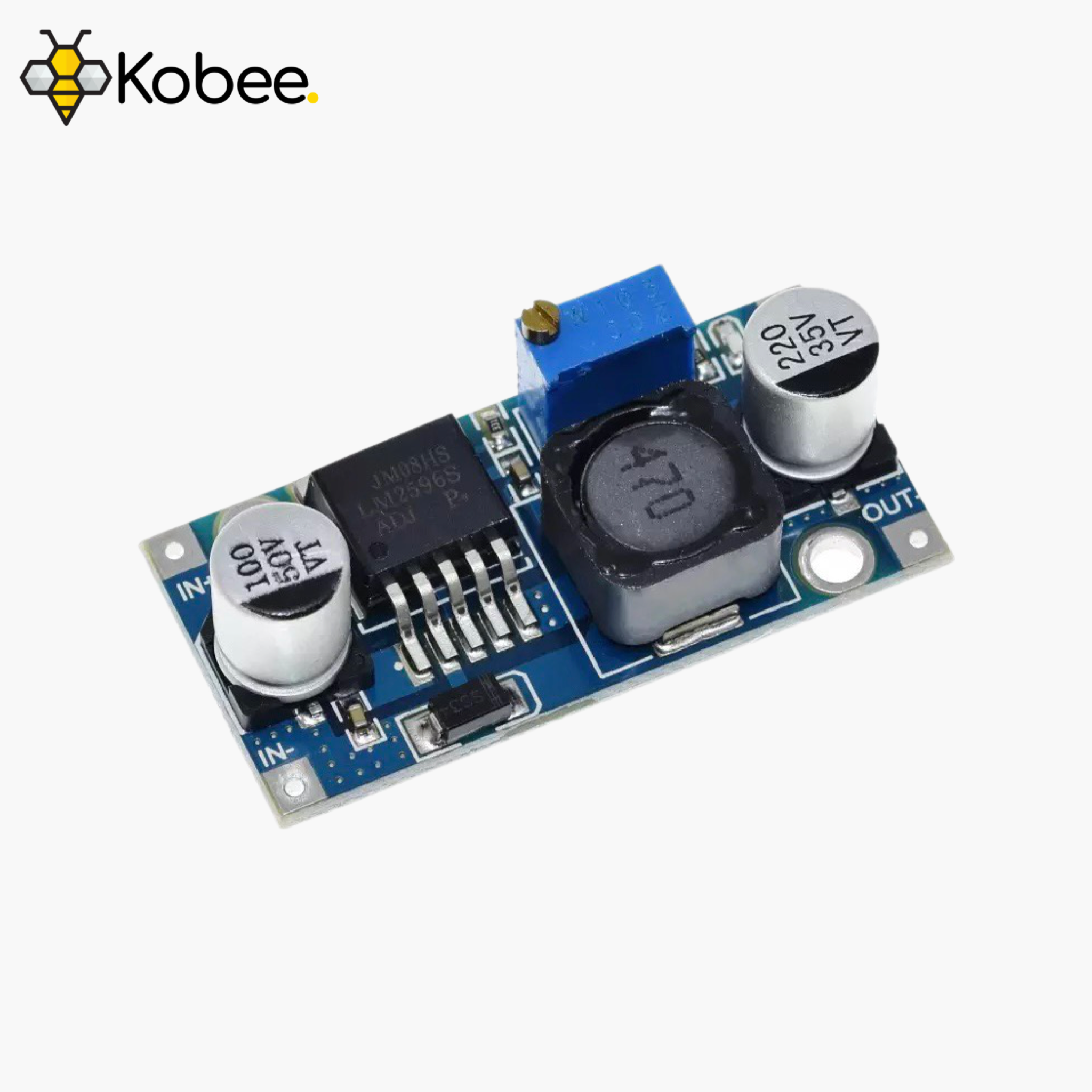

LM2596 Step-Down Adjustable DC-DC Switching Buck Converter
- Product SKU: AA376
- Category: Best Sellers, New Products, Power and Batteries
The LM2596 Adjustable DC-DC Step Down converter allows you to step down (Buck) an input voltage range of 3 - 40V to an output voltage range of 1.23 - 37V up to a maximum of 3 Amps
The module includes Under voltage protection, current limiting and thermal overload protection. To adjust the output voltage, turn the onboard trimpot
Buck converters are a great way to utilise one power supply for multiple components in a project that require different voltages. As an example running 12V LED strips and 5V Microcontroller of a single 12V supply instead of both a 12V and 5V supply
The LM2596 Adjustable DC-DC Step Down converter allows you to step down (Buck) an input voltage range of 3 - 40V to an output voltage range of 1.23 - 37V up to a maximum of 3 Amps
The module includes Under voltage protection, current limiting and thermal overload protection. To adjust the output voltage, turn the onboard trimpot
Buck converters are a great way to utilise one power supply for multiple components in a project that require different voltages. As an example running 12V LED strips and 5V Microcontroller of a single 12V supply instead of both a 12V and 5V supply
Note If you need to increase (Boost) your voltage we sell the MT3608 Adjustable DC-DC Step Up Converter in our store which will allow you to do just that
MT3608 Adjustable DC-DC Step Up Converter
| Spec | Value |
|---|---|
| Input Voltage | 3 to 40V |
| Output Voltage Range |
1.23 to 37V |
| Max Output Current | 3A |
| Adjustment |
25 Turn Trimpot |
| Efficiency | 93% |
| Switching Frequency | 150kHz |
| Built in protection | Thermal Shutdown, Current Limiting |
