MT3608 Adjustable DC-DC Step Up Converter
Available:
Out of Stock
- Product SKU: AA180
- Category: Best Sellers, New Products, Power and Batteries
$2.99

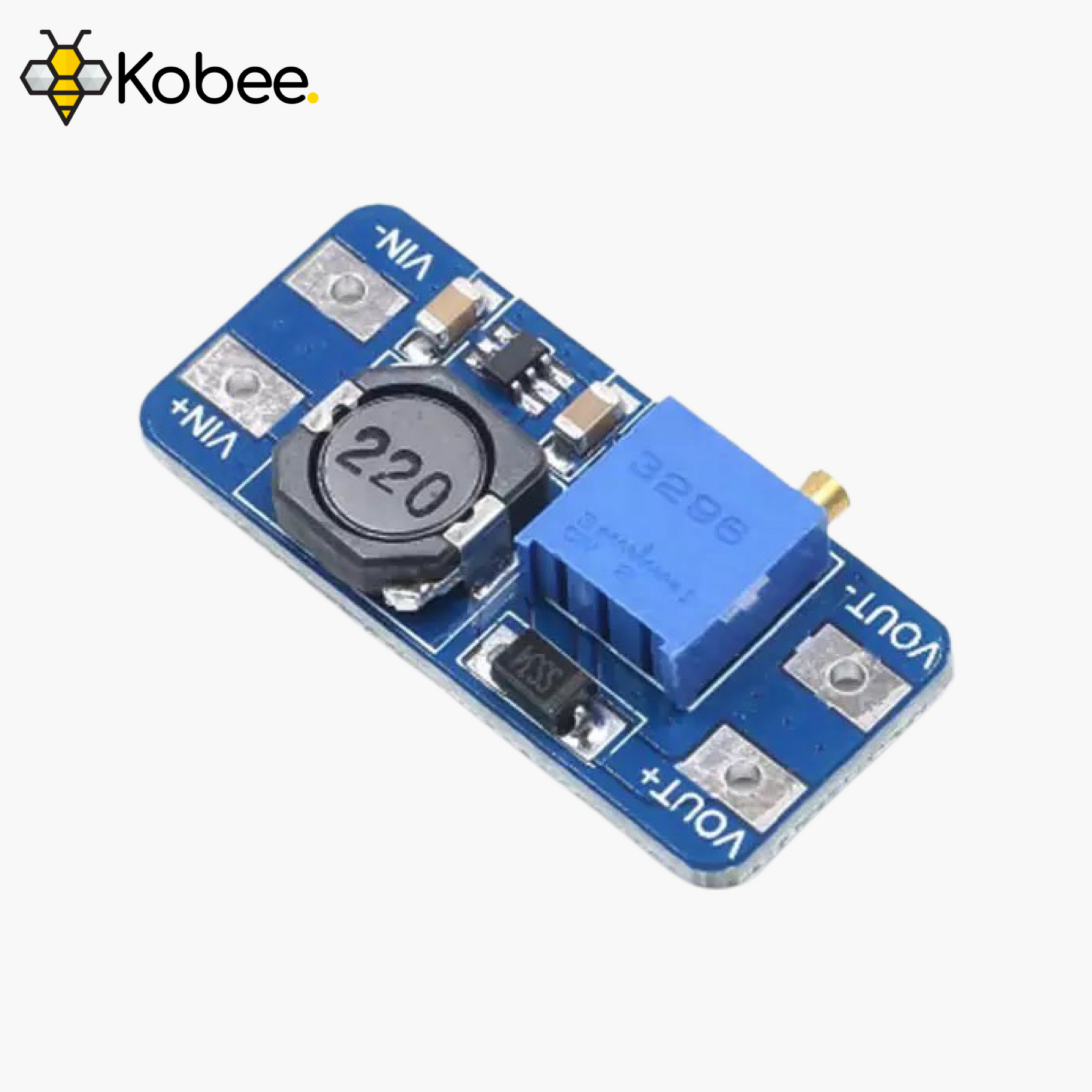

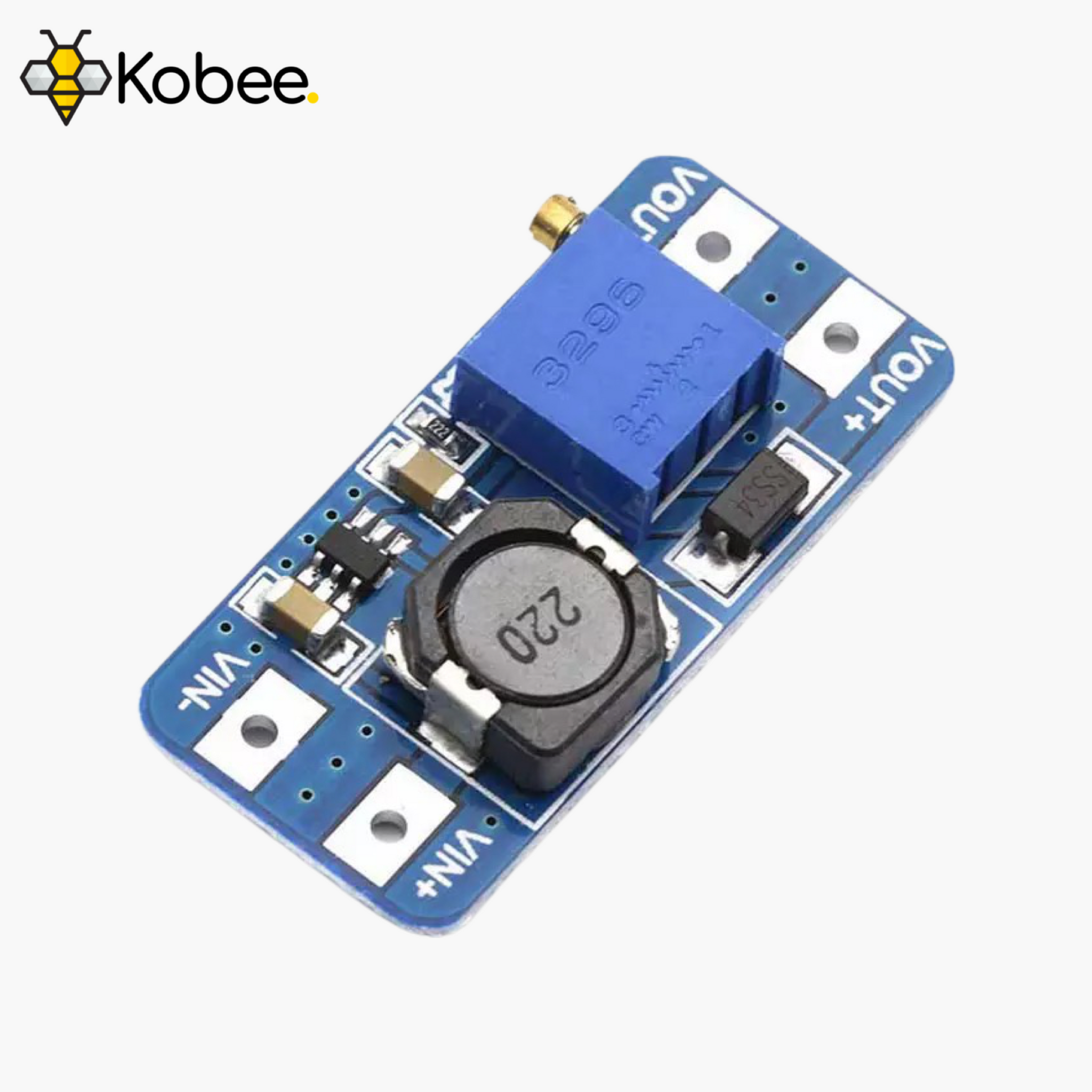

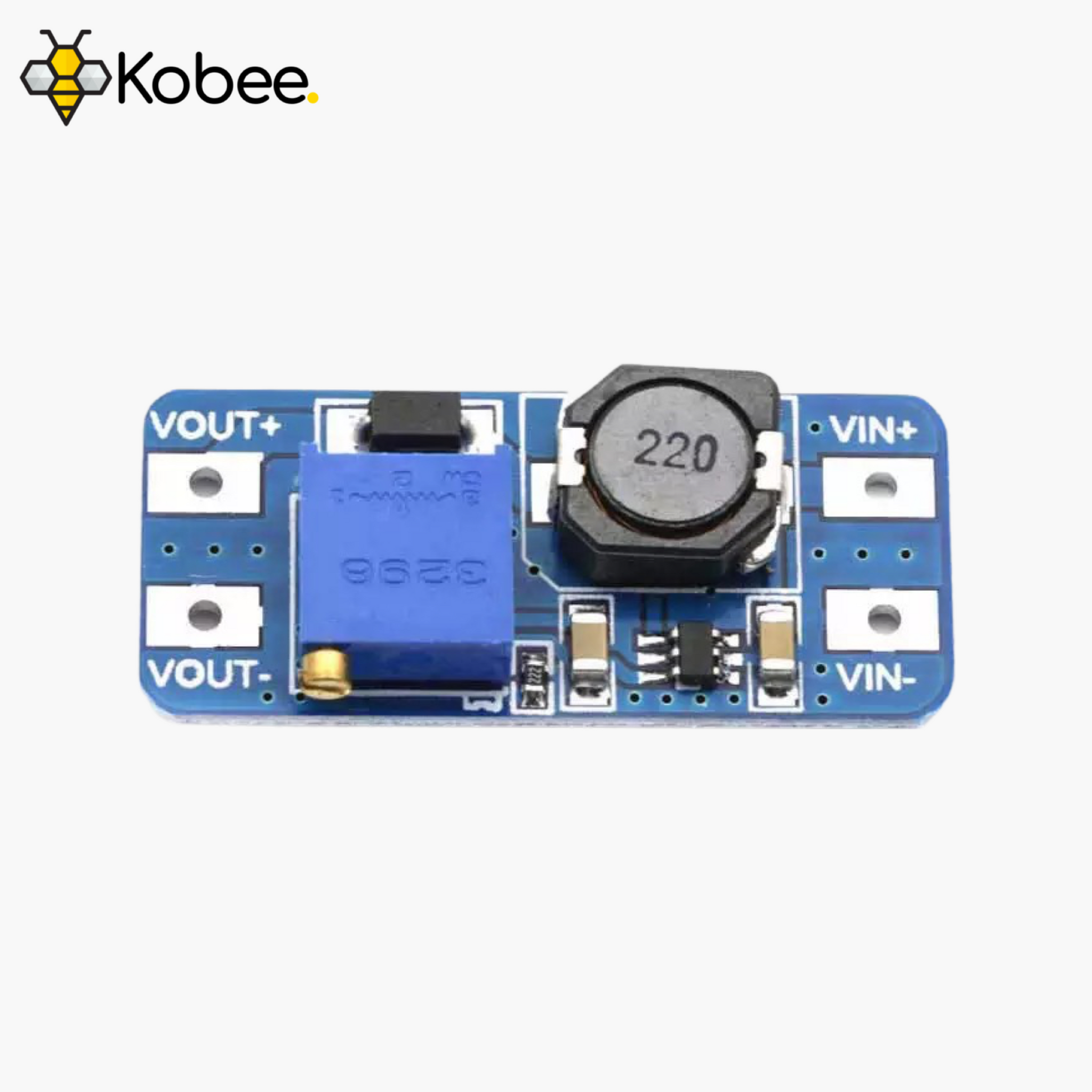

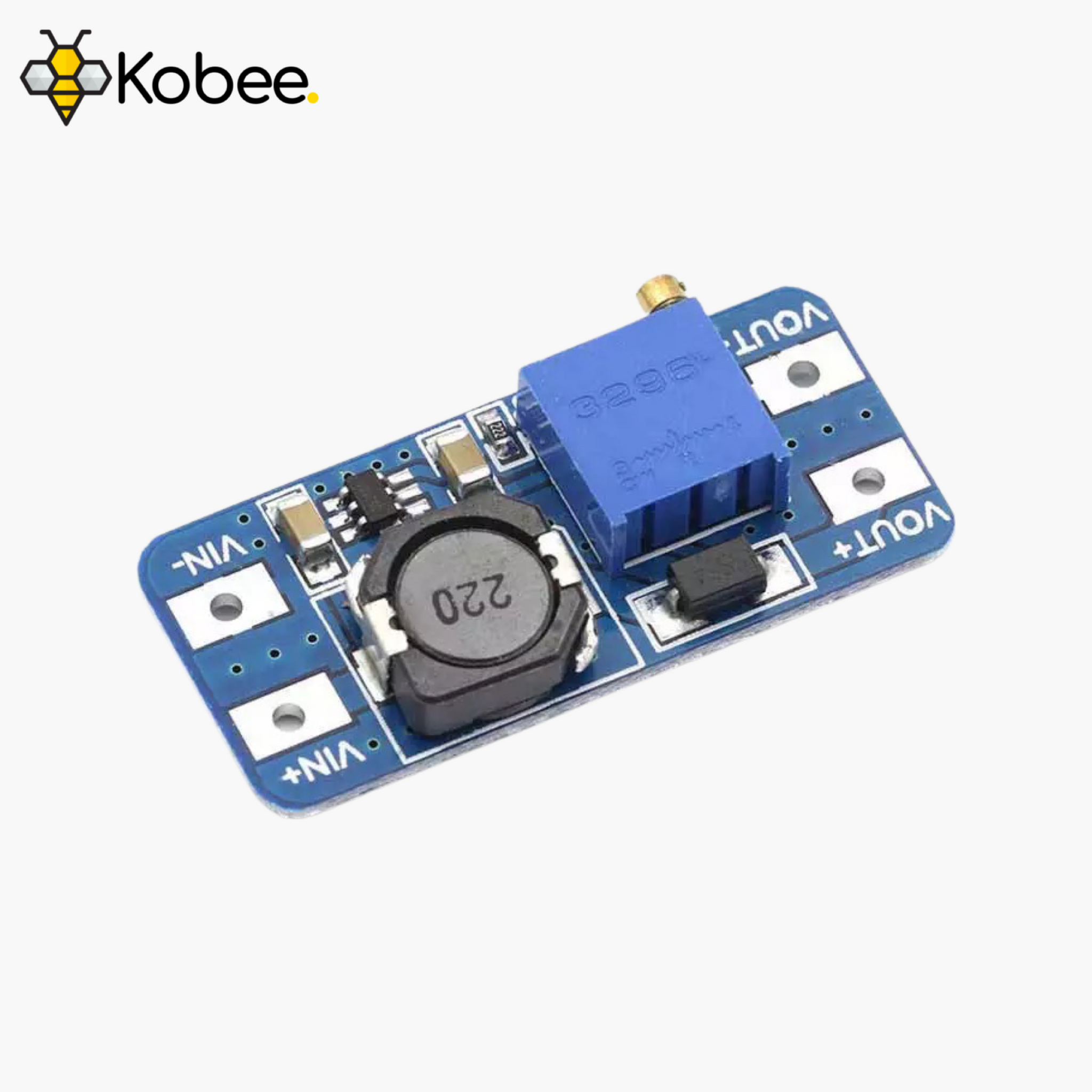

The MT3608 Adjustable DC-DC Step Up converter allows you to step up (Boost) the voltage from as little as 2V up to 28V up to a maximum of 2 Amps
The module includes Under voltage protection, current limiting and thermal overload protection. To adjust the output voltage, turn the onboard trimpot
Boost converters are an easy way to increase a given voltage to supply a specific component althoug this comes at the cost of reduced current output. One thing to keep in mind is that given this is a boost converter, the output voltage must always be higher than the input voltage
Note If you need to reduce (Buck) your voltage we sell the LM2596 Step-Down Adjustable DC-DC Switching Buck Converter in our store which will allow you to do just that| Spec | Value |
|---|---|
| Input Voltage | 2 to 24V |
| Max Output Voltage | 28V |
| Max Output Current | 2A |
| Asjustment | 25 Turn Trimpot |
| Efficiency | 93% |
| Switching Frequency | 1.2MHz |
